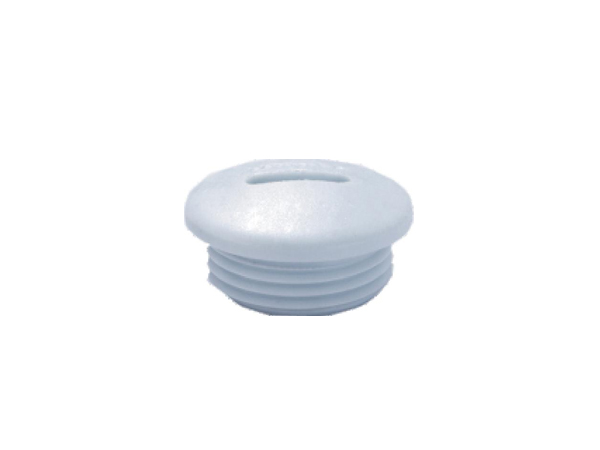

| 描述 | Description | 塑料蒙盖 Nylon plug |
| 材料 |
Material
|
尼龙 Nylon 6 |
| 防护等级 | Degree of protection | IP68(要使用O型圈的情况下) IP68(with O-searing) |
| 温度范围 | Temperature range | -40℃...+120℃ |
单位:mm
Unit: mm
|

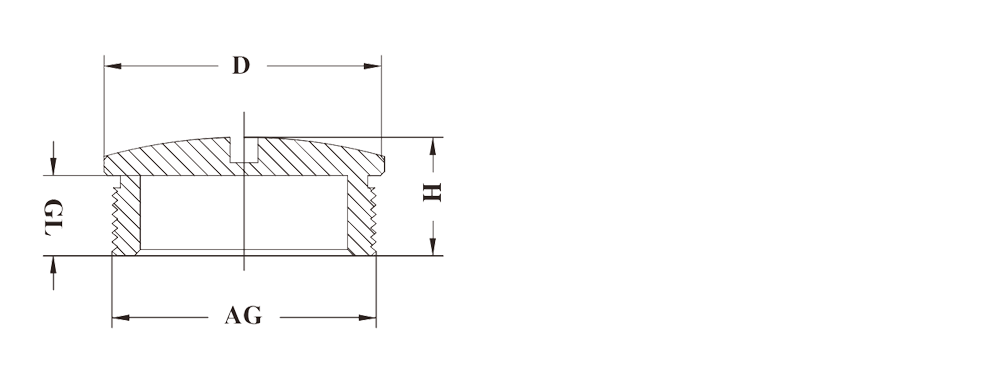

螺纹尺寸 Thread side |
螺纹长度(GL) Thread lengthGL) |
高度(H) Height(H) |
螺纹外径(AG) Thread diameter(AG) |
外圆直径(D) External dimension(D) |
型号(灰白色) Designation(Grey) |
订货号 Order NO. |
|
PG制螺纹 PG Thread |
||||||
| PG7 | 6.0 | 10.0 | 12.5 | 15.5 | WNPP-PG7G/R | 09000000810 |
| PG9 | 6.0 | 10.0 | 15.2 | 18.5 | WNPP-PG9G/R | 09000000811 |
| PG11 | 8.0 | 11.5 | 18.6 | 22.0 | WNPP-PG11G/R | 09000000812 |
| PG13.5 | 8.0 | 11.5 | 20.4 | 24.0 | WNPP-PG13.5G/R | 09000000813 |
| PG16 | 8.0 | 12.0 | 22.5 | 27.0 | WNPP-PG16G/R | 09000000814 |
| PG21 | 7.5 | 12.0 | 28.3 | 33.0 | WNPP-PG21G/R | 09000000815 |
| PG29 | 8.0 | 12.0 | 37.0 | 43.0 | WNPP-PG29G/R | 09000000816 |
| PG36 | 10.5 | 14.0 | 47.0 | 55.0 | WNPP-PG36G/R | 09000000817 |
| PG42 | 11.0 | 15.5 | 54.0 | 62.0 | WNPP-PG42G/R | 09000000818 |
| PG48 | 13.0 | 17.0 | 59.3 | 68.5 | WNPP-PG48G/R | 09000000819 |
|
M公制螺纹 Metric Thread |
||||||
| M12x1.5 | 6.0 | 10.0 | 12.0 | 15.0 | WNPP-M12G/R | 19000000810 |
| M16x1.5 | 5.5 | 10.0 | 16.0 | 18.5 | WNPP-M16G/R | 19000000811 |
| M20x1.5 | 8.0 | 11.5 | 20.0 | 25.0 | WNPP-M20G/R | 19000000812 |
| M25x1.5 | 7.5 | 12.5 | 25.0 | 29.5 | WNPP-M25G/R | 19000000813 |
| M32x1.5 | 9.0 | 13.5 | 32.0 | 39.0 | WNPP-M32G/R | 19000000814 |
| M40x1.5 | 11.0 | 15.0 | 40.0 | 48.0 | WNPP-M40G/R | 19000000815 |
| M50x1.5 | 12.0 | 18.0 | 50.0 | 61.5 | WNPP-M50G/R | 19000000816 |
| M63x1.5 | 12.5 | 18.0 | 63.0 | 70.5 | WNPP-M63G/R | 19000000817 |
