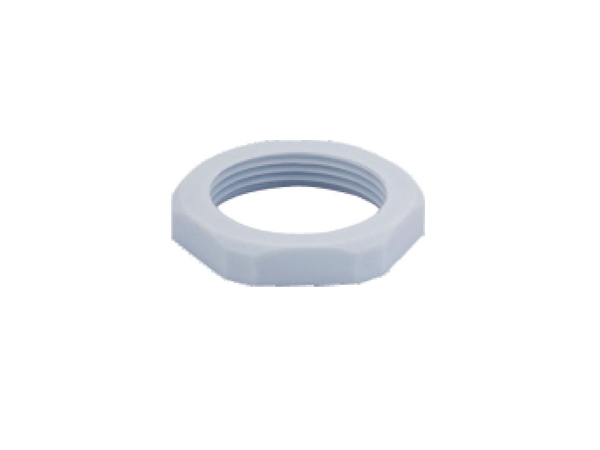

| 描述 | Description | |
| 材料 | Material | 尼龙66 Poiyamide |
| 颜色 | Color | 灰色,黑色 Grey,Black |
| 温度范围 | Temperature range | -40℃...+100℃ |
单位:mm
Unit: mm
|
螺纹尺寸 Thread side |
扳手尺寸(SW) Wrench size(SW) |
厚度(H) Thickness(H) |
型号(灰色) Designation(Grey) |
订货号 Order NO. |
型号(黑色) Designation(Black) |
订货号 Order NO. |
|
PG制螺纹 PG Thread |
||||||
| PG7 | 19 | 5.0 | WNAP-PG7G/S | 09000001510 | WNAP-PG7B/S | 09000001520 |
| PG9 | 22 | 5.0 | WNAP-PG9G/S | 09000001511 | WNAP-PG9B/S | 09000001521 |
| PG11 | 24 | 5.0 | WNAP-PG11G/S | 09000001512 | WNAP-PG11B/S | 09000001522 |
| PG13.5 | 27 | 6.0 | WNAP-PG13.5G/S | 09000001513 | WNAP-PG13.5B/S | 09000001523 |
| PG16 | 30 | 6.0 | WNAP-PG16G/S | 09000001514 | WNAP-PG16B/S | 09000001524 |
| PG21 | 36 | 7.0 | WNAP-PG21G/S | 09000001515 | WNAP-PG21B/S | 09000001525 |
| PG29 | 45 | 7.0 | WNAP-PG29G/S | 09000001516 | WNAP-PG29B/S | 09000001526 |
| PG36 | 59 | 8.0 | WNAP-PG36G/S | 09000001517 | WNAP-PG36B/S | 09000001527 |
| PG42 | 65 | 8.0 | WNAP-PG42G/S | 09000001518 | WNAP-PG42B/S | 09000001528 |
| PG48 | 70 | 8.0 | WNAP-PG48G/S | 09000001519 | WNAP-PG48B/S | 09000001529 |
|
M公制螺纹
Metric Thread |
||||||
| M12x1.5 | 19 | 5.0 | WNAP-M12G/S | 19000001510 | WNAP-M12B/S | 19000001521 |
| M16x1.5 | 22 | 5.0 | WNAP-M16G/S | 19000001511 | WNAP-M16B/S | 19000001522 |
| M18x1.5 | 24 | 5.0 | WNAP-M18G/S | 19000001512 | WNAP-M18B/S | 19000001523 |
| M20x1.5 | 27 | 6.0 | WNAP-M20G/S | 19000001513 | WNAP-M20B/S | 19000001524 |
| M22x1.5 | 30 | 6.0 | WNAP-M22G/S | 19000001514 | WNAP-M22B/S | 19000001525 |
| M24x1.5 | 30 | 6.0 | WNAP-M24G/S | 19000001515 | WNAP-M24B/S | 19000001526 |
| M25x1.5 | 32 | 7.0 | WNAP-M25G/S | 19000001516 | WNAP-M25B/S | 19000001527 |
| M32x1.5 | 40 | 7.0 | WNAP-M32G/S | 19000001517 | WNAP-M32B/S | 19000001528 |
| M40x1.5 | 49 | 8.0 | WNAP-M40G/S | 19000001518 | WNAP-M40B/S | 19000001529 |
| M50x1.5 | 65 | 8.0 | WNAP-M50G/S | 19000001519 | WNAP-M50B/S | 19000001530 |
| M63x1.5 | 74 | 8.0 | WNAP-M63G/S | 19000001520 | WNAP-M63B/S | 19000001531 |
