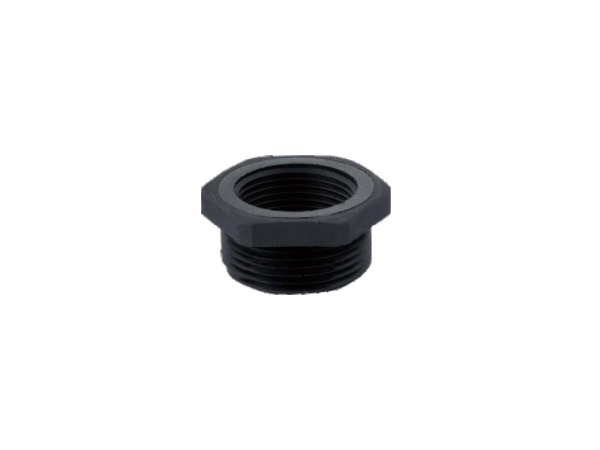

| 描述 | Description | 尼龙减径环 Polyamide reducer |
| 材料 |
Material
|
尼龙66 Polyamide |
| 颜色 | Color | 黑色 Black |
| 温度范围 | Temperature range | -40℃...+100℃ |
单位:mm
Unit: mm
|
外螺纹(AG) Outside thread (AG) |
内螺纹(LG) Insidethread(LG) |
外螺纹长度(GL) Outsidethread length(GL) |
总长(H) Total length(H) |
扳手尺寸(SW) Wrench size(SW) |
型号 Designation |
订货号 Order NO. |
|
PG制螺纹 PG Thread |
||||||
| PG11 | PG9 | 8 | 15 | 24 | WNSCP-PG11PG9 | 09000001310 |
| PG13.5 | PG11 | 9 | 21.5 | 22 | WNSCP-PG13.5PG11 | 09000001311 |
| PG16 | PG11 | 10 | 16 | 27 | WNSCP-PG16PG11 | 09000001312 |
| PG16 | PG13.5 | 10 | 17 | 27 | WNSCP-PG16PG13.5 | 09000001313 |
| PG21 | PG16 | 11 | 17 | 39 | WNSCP-PG21PG16 | 09000001314 |
| PG29 | PG21 | 11.5 | 17 | 39 | WNSCP-PG29PG21 | 09000001315 |
|
M公制螺纹 Metric Thread |
||||||
| M20x1.5 | M16x1.5 | 9.5 | 15 | 24 | WNSCP-M20M16 | 19000001310 |
| M25x1.5 | M20x1.5 | 10 | 17 | 27 | WNSCP-M25M20 | 19000001311 |
| M32x1.5 | M20x1.5 | 11.5 | 17 | 39 | WNSCP-M32M20 | 19000001312 |
| M32x1.5 | M25x1.5 | 11 | 17 | 39 | WNSCP-M32M25 | 19000001313 |
| M40x1.5 | M32x1.5 | 11 | 17 | 45 | WNSCP-M40M32 | 19000001314 |
