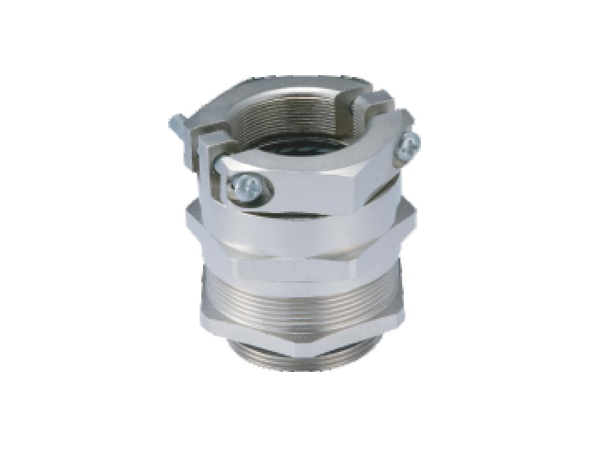

| 描述 | Description | 双锁紧型金属电缆接头 Gland with external strain relief via calmping jaws |
| 材料 |
Material
|
黄铜镀镍(外壳)，尼龙PA66(芯套) Nickel-plate brass,Nylon |
| 密封件 | Searing | 尼龙6和丁晴橡胶 Nylon and NBR |
| 防护等级 | Degree of protection | IP68(要使用O型圈的情况下) IP68(with O-searing) |
单位:mm
Unit:mm
Unit:mm
|

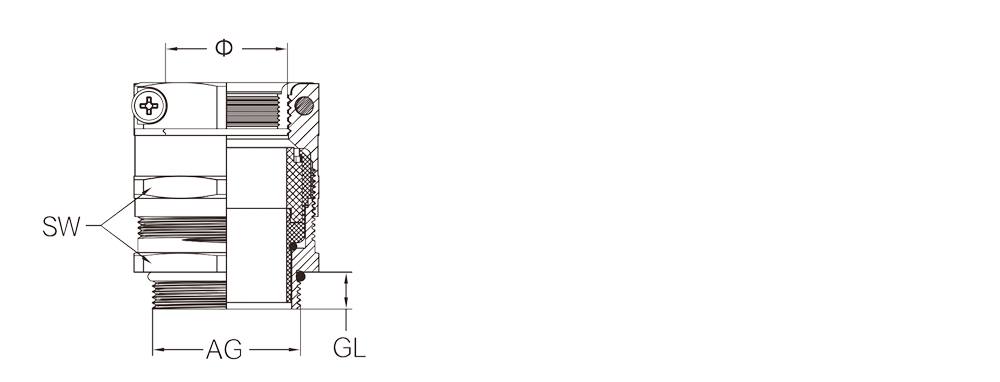

螺纹尺寸
Thread side |
卡口范围(Ø) |
螺纹外径(AG) Thread diameter(AG) |
扳手尺寸(SW) Wrenchsize(SW) |
螺纹长度(GL) hreadlength(GL) |
型号 Designation |
订货号 OrdenNo. |
|
PG制螺纹
PG Thread
|
||||||
| PG9 | 4-8 | 15.2 | 17 | 7 | WNKS-PG9(4-8) | 09000000310 |
| PG11 | 5-10 | 18.6 | 22 | 7 | WNKS-PG11(5-10) | 09000000311 |
| PG13.5 | 6-12 | 20.4 | 22 | 8 | WNKS-PG13.5(6-12) | 09000000312 |
| PG16 | 10-14 | 22.5 | 24 | 7.5 | WNKS-PG16(10-14) | 09000000313 |
| PG21 | 13-18 | 28.3 | 30 | 8 | WNKS-PG21(13-18) | 09000000314 |
| PG29 | 18-25 | 37.0 | 40 | 9 | WNKS-PG29(18-25) | 09000000315 |
| PG36 | 22-32 | 47.0 | 50 | 12 | WNKS-PG36(22-32) | 09000000316 |
| PG42 | 30-38 | 54.0 | 57 | 12 | WNKS-PG42(30-38) | 09000000317 |
|
M公制螺纹
Metric Thread
|
||||||
| M16x1.5 | 4-8 | 16 | 18 | 6.5 | WNKS-M16(4-8) | 19000000310 |
| M16x1.5 | 5-10 | 16 | 22 | 6 | WNKS-M16(5-10) | 19000000311 |
| M20x1.5 | 6-12 | 20 | 22 | 7.5 | WNKS-M20(6-12) | 19000000312 |
| M25x1.5 | 10-16 | 25 | 27 | 8 | WNKS-M25(10-16) | 19000000313 |
| M25x1.5 | 13-18 | 25 | 30 | 7.5 | WNKS-M25(13-18) | 19000000314 |
| M32x1.5 | 16-22 | 32 | 35 | 8.5 | WNKS-M32(16-22) | 19000000315 |
| M32x1.5 | 18-25 | 32 | 40 | 8 | WNKS-M32(18-25) | 19000000316 |
| M40x1.5 | 22-30 | 40 | 45 | 12 | WNKS-M40(22-30) | 19000000317 |
| M40x1.5 | 22-32 | 40 | 50 | 12 | WNKS-M40(22-32) | 19000000318 |
| M50x1.5 | 30-38 | 50 | 57 | 12 | WNKS-M50(30-38) | 19000000319 |
