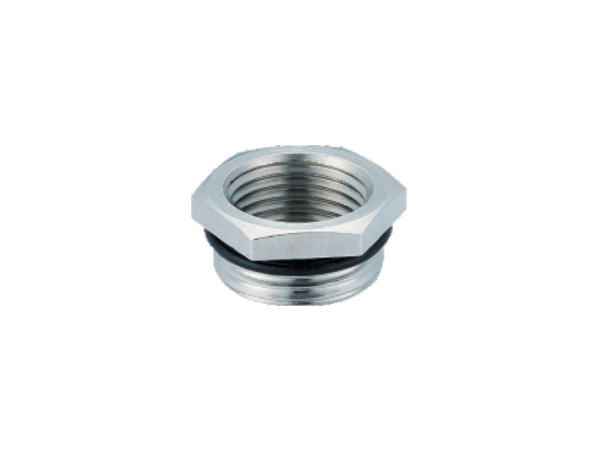

| 描述 | Description | 金属减径环 Metal reducer |
| 材料 |
Material
|
黄铜镀镍 Nickel-plate brass |
| 形状 | Shape | 六角 Round, Hexagonal |
| 使用场合 | Applications | 适用于需要装螺纹直径减小的场合 Apply to the situation of the diameter need to be reduced |
单位:mm
Unit: mm
|
外螺纹(AG) Outside thread (AG) |
内螺纹(LG) Insidethread(LG) |
外螺纹长度(L1) Outsidethread length(L1) |
总长(H) Total length(H) |
扳手尺寸(SW) Wrench size(SW) |
型号(六角) Designation (Hexagonal) |
订货号 Order NO. |
|
PG制螺纹 PG Thread |
||||||
| PG9 | PG7 | 6.0 | 9 | 17 | WNSC-PG9PG7 | 09000001210 |
| PG11 | PG9 | 7.0 | 11 | 20 | WNSC-PG11PG9 | 09000001211 |
| PG13.5 | PG11 | 7.0 | 10 | 22 | WNSC-PG13.5PG11 | 09000001213 |
| PG16 | PG13.5 | 7.0 | 11 | 24 | WNSC-PG16PG13.5 | 09000001214 |
| PG21 | PG16 | 7.0 | 11 | 30 | WNSC-PG21PG16 | 09000001215 |
| PG29 | PG21 | 8.0 | 13 | 40 | WNSC-PG29PG21 | 09000001216 |
| PG36 | PG29 | 9.0 | 13 | 50 | WNSC-PG36PG29 | 09000001217 |
| PG42 | PG36 | 9.0 | 15 | 57 | WNSC-PG42PG36 | 09000001218 |
| PG48 | PG42 | 10.0 | 15 | 65 | WNSC-PG48PG42 | 09000001219 |
|
M公制螺纹 Metric Thread |
||||||
| M16x1.5 | M12x1.5 | 6.0 | 9 | 17 | WNSC-M16M12 | 19000001210 |
| M20x1.5 | M16x1.5 | 7.0 | 10 | 22 | WNSC-M20M16 | 19000001211 |
| M25x1.5 | M20x1.5 | 7.0 | 10 | 27 | WNSC-M25M20 | 19000001212 |
| M32x2.0 | M25x1.5 | 8.0 | 11.5 | 35 | WNSC-M32M25 | 19000001213 |
| M40×2.0 | M32×2.0 | 9.0 | 13 | 42 | WNSC-M40M32 | 19000001214 |
| M50x2.0 | M40×2.0 | 9.0 | 14 | 57 | WNSC-M50M40 | 19000001215 |
| M63x2.0 | M50×2.0 | 11.0 | 14 | 65 | WNSC-M63M50 | 19000001216 |
