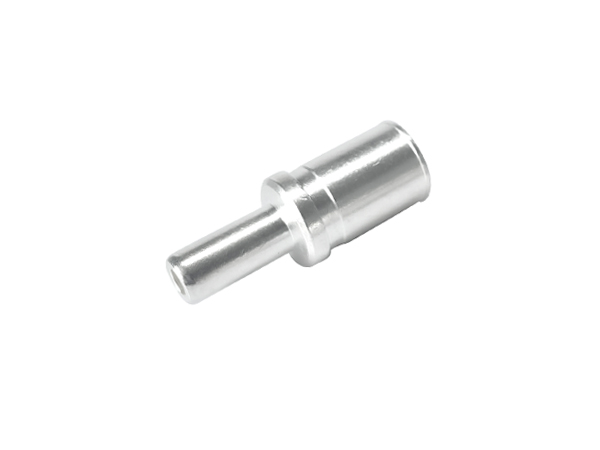

| 200A冷压接插针 200A Crimp contacts | ||
| 公母类型 | 母插针 | |
| 描述 | Description |
适用于HM等插芯 for HM inserts |
| 材料 | Material | 铜合金 copper alloy |
| 表面处理 | Surface | 镀银 silver plated |
| 额定电流 | Rated Current | 200A |
| 接触电阻 | Contact Resistance |
≤0.3mΩ
|
| 线径范围 | Wire Diameter Range |
25-70mm²
|
| 可插拔次数 | Mechanical Working Life-mating Cycles | ≥500 |
|

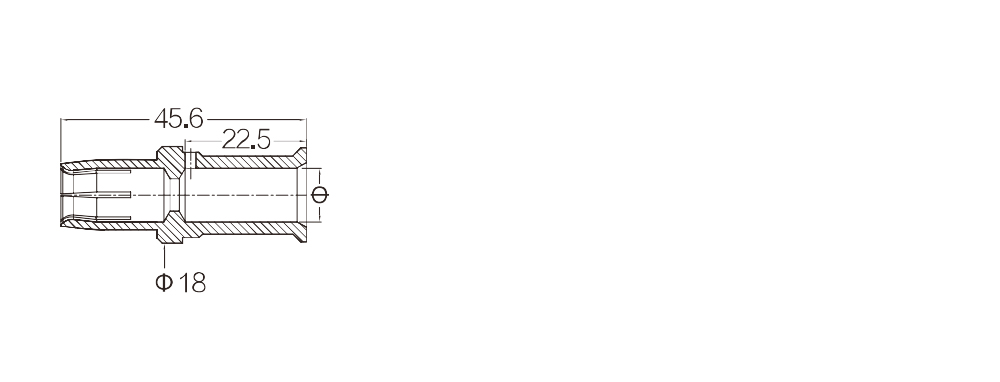

产品代号 Part NO.
|
线径 Wire Diameter | Ø |
剥线长度 Stripping length
|
|
CHSF200-25
|
25mm² | 7 | 22.5mm |
| CHSF200-35 | 35mm² | 8.2 | 22.5mm |
| CHSF200-50 | 50mm² | 10 | 22.5mm |
| CHSF200-70 | 70mm² | 11.5 | 22.5mm |
