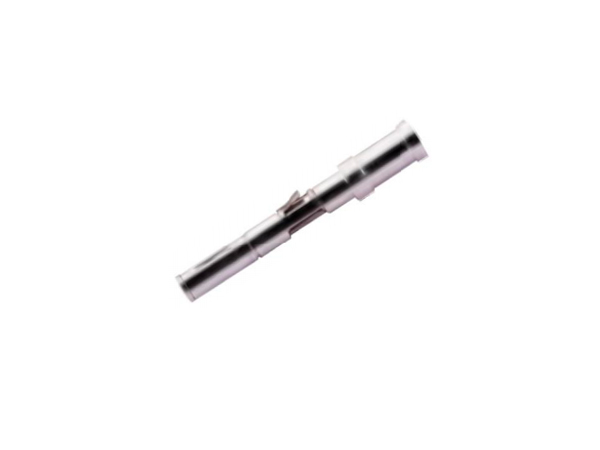

| 10A冷压接插针，带三爪支撑 10A Crimp contactstake three claws support | ||
| 公母类型 | 母插针 | |
| 描述 | Description |
适用于HD.HDD.HM.HK.HQ等插芯 for HD.HDD.HM.HK.HQ inserts |
| 材料 | Material | 铜合金 copper alloy |
| 表面处理 | Surface | 镀银 silver plated |
| 额定电流 | Rated Current | 10A |
| 接触电阻 | Contact Resistance |
≤3mΩ
|
| 线径范围 | Wire Diameter Range |
0.14-2.5mm²（26-14 AWG)
|
| 可插拔次数 | Mechanical Working Life-mating Cycles | ≥500 |
|
产品代号 Part NO.
|
线径 Wire Diameter
|
AWG | Ø | 剥线长度 Stripping length |
|
ZCDSF-0.37
|
0.14-0.37mm²
|
26-22 |
0.90
|
8mm |
|
ZCDSF-0.5
|
0.5mm²
|
20
|
1.10 |
8mm |
|
ZCDSF-0.75
|
0.75mm² |
18
|
1.30 | 8mm |
|
ZCDSF-1.0
|
1.0mm²
|
18
|
1.45 | 8mm |
|
ZCDSF-1.5
|
1.5mm² | 16 | 1.75 | 8mm |
|
ZCDSF-2.5
|
2.5mm² | 14 | 2.25 | 6mm |
