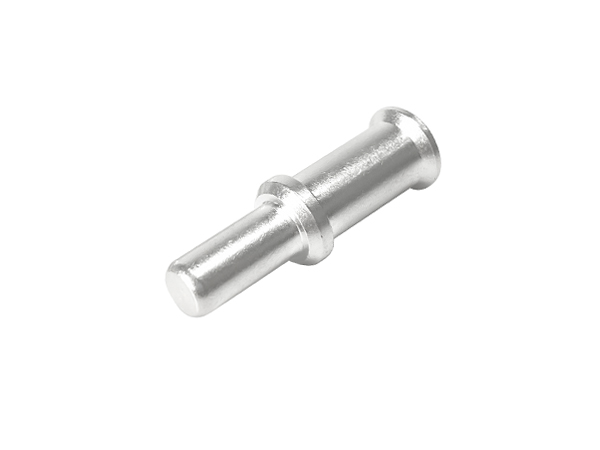

| 100A冷压接插针 100A Crimp contacts（采用冠簧接触 with crown contact） | ||
| 公母类型 | 公插针 | |
| 描述 | Description |
适用于HM,HK等插芯 for HM、HK inserts |
| 材料 | Material | 铜合金 copper alloy |
| 表面处理 | Surface | 镀银 silver plated |
| 额定电流 | Rated Current | 100A |
| 接触电阻 | Contact Resistance |
≤0.3mΩ
|
| 线径范围 | Wire Diameter Range |
10-35mm²
|
| 可插拔次数 | Mechanical Working Life-mating Cycles | ≥500 |
|

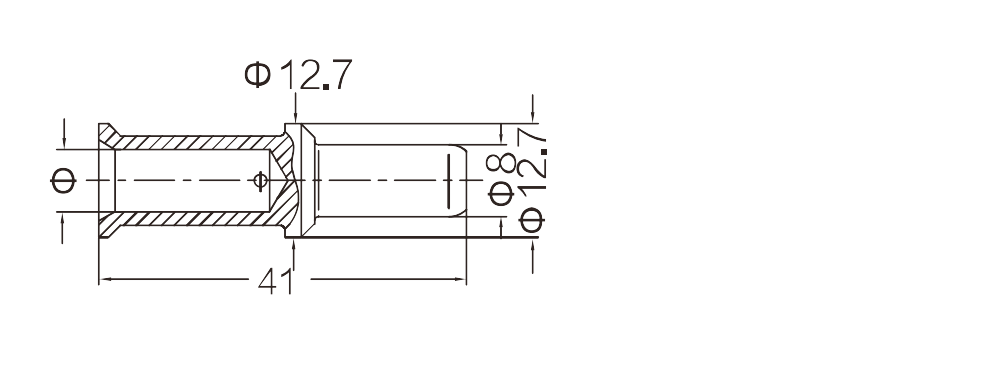

产品代号 Part NO.
|
线径 Wire Diameter | Ø |
剥线长度 Stripping length
|
|
CKSM-10
|
10mm² | 4.3 | 19mm |
|
CKSM-16
|
16mm² | 5.5 | 19mm |
| CKSM-25 | 25mm² | 7 | 19mm |
| CKSM-35 | 35mm² | 8.2 | 16mm |
