规格参数
认证/下载

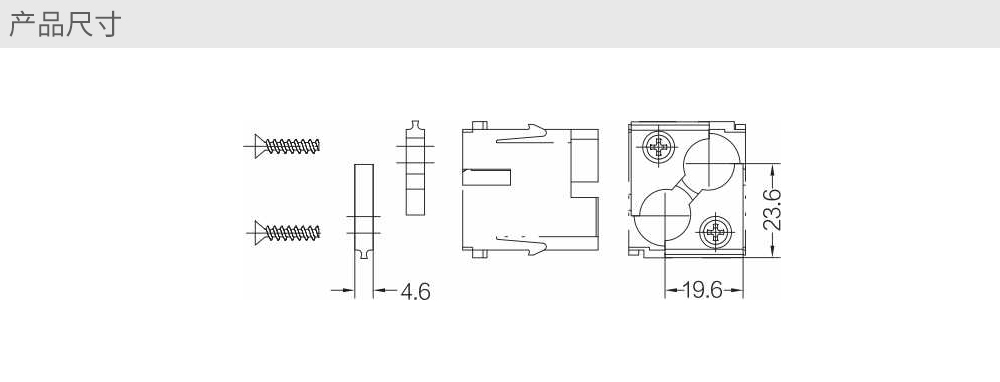

2D
3D
| 插芯 | ||
| 接插件针数 | Number Of Contacts | 1.2 |
|
绝缘电阻
|
Insulation resistance
|
≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+80℃ |
|
依据UL 94的阻燃等级
|
Flammability Acc. To Ul94
|
V0
|
|
可拔插次数
|
Mechknical Working Life-mating Cycles
|
≥500
|
|
Q-Coax针
|
Q-Coax contacts
|
|
|
针数
|
Number of contacts
|
|
| -Q-Coax | - Q-Coax |
4+屏蔽
|
| -高密度Q-Coax | - High Density Q-Coax |
8+屏蔽
|
| 依据 EN 61 984的电气数据 | Electrical data acc. to EN 61 984 | |
| -Q-Coax | - Q-Coax |
10A 50V 0.8kV 3
|
| -高密度Q-Coax | - High Density Q-Coax |
5A 50V 0.8kV 3
|
| 额定电流 | Rated current |
10/5A
|
| 额定电压 | Rated voltage | 50V |
| 额定脉冲电压 | Rated impulse voltage | 0.8kV |
| 污染程度 | Pollution degree | 3 |
| 材料 | Material | |
| -绝缘体 |
- Insulator
|
聚碳酸酯
|
| -外导体 |
- Outer conductor
|
锌合金
|
| 接触电阻 |
Contact resistance
|
≤ 4mΩ
|
| 工作温度范围 |
Limiting temperatures
|
-40 ℃...+ 80℃
|
| 依据UL94的阻燃等级 |
Flammability acc. to UL 94
|
V0
|
| 外导体表面 |
Outer surface finish
|
镍
|
| 电缆直径 |
Cable diameter
|
3-9.5mm
|
| D-Sub冷压针（5A） |
D-Sub crimp contacts(5A)
|
|
| 材料 |
Material
|
铜合金
|
| 表面处理 |
Surface
|
镀金
|
| 接触电阻 |
Contact resistance
|
≤3mΩ
|
| 冷压连接 |
Crimp terminal
|
|
| -mm² | -mm² |
0.09 -0.52mm²
|
| -AWG | -AWG | 28-20 |
| D型针（10A） |
D contacts(10A)
|
|
| 材料 |
Material
|
银合金
|
| 表面处理 |
Surface
|
镀金
|
| 接触电阻 |
Contact resistance
|
≤3mΩ
|
| 冷压连接 |
Crimp terminal
|
|
| -mm² | -mm² |
0.14-2 5mm²
|
| -AWG | -AWG |
26-14
|
