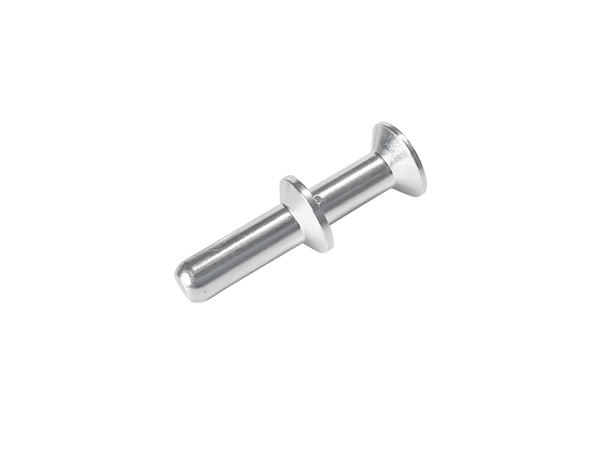

| 70A冷压接插针 70A Crimp contacts | ||
| 公母类型 | 母插针 | |
| 描述 | Description |
适用于HM等插芯 for HM inserts |
| 材料 | Material | 铜合金 copper alloy |
| 表面处理 | Surface | 镀银 silver plated |
| 额定电流 | Rated Current | 70A |
| 接触电阻 | Contact Resistance |
≤0.5mΩ
|
| 线径范围 | Wire Diameter Range |
6-25mm²
|
| 可插拔次数 | Mechanical Working Life-mating Cycles | ≥500 |
|

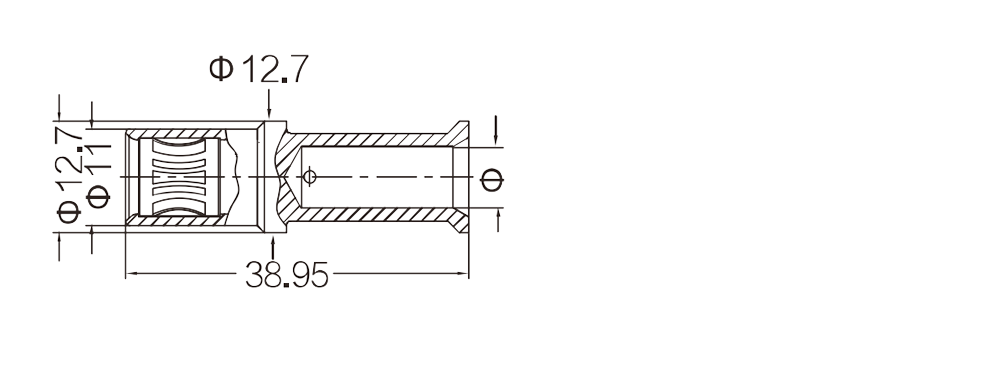

产品代号 Part NO.
|
线径 Wire Diameter
|
∅
|
剥线长度 Stripping length
|
| CKSF70-6 | 6mm² | 3.5 | 15.5mm |
|
CKSF70-10
|
10mm² | 4.3 | 15.5mm |
|
CKSF70-16
|
16mm² | 5.5 | 15.5mm |
| CKSF70-25 | 25mm² | 7 | 15.5mm |
