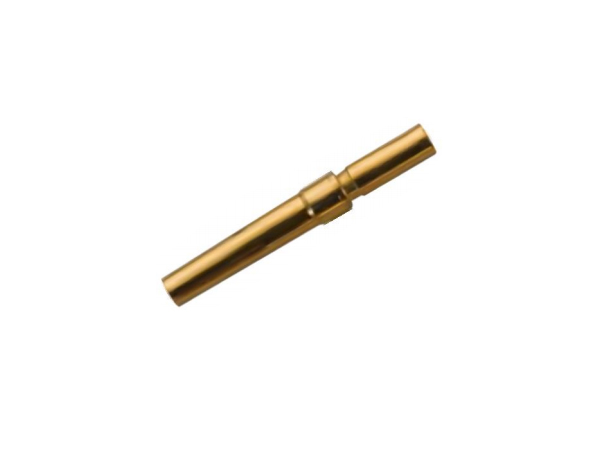

| 5A冷压接插针 5A Crimp contacts | ||
| 公母类型 | 母插针 | |
| 描述 | Description |
适用于HM.EMC-008.D-SUB.插芯 for HM.EMC-008.D-SUB.inserts |
| 材料 | Material | 铜合金 copper alloy |
| 表面处理 | Surface | 镀金 gold plated |
| 额定电流 | Rated Current | 5A |
| 接触电阻 | Contact Resistance |
≤3mΩ
|
| 线径范围 | Wire Diameter Range |
0.09—0.82mm²（28-18 AWG)
|
| 可插拔次数 | Mechanical Working Life-mating Cycles | ≥500 |
|

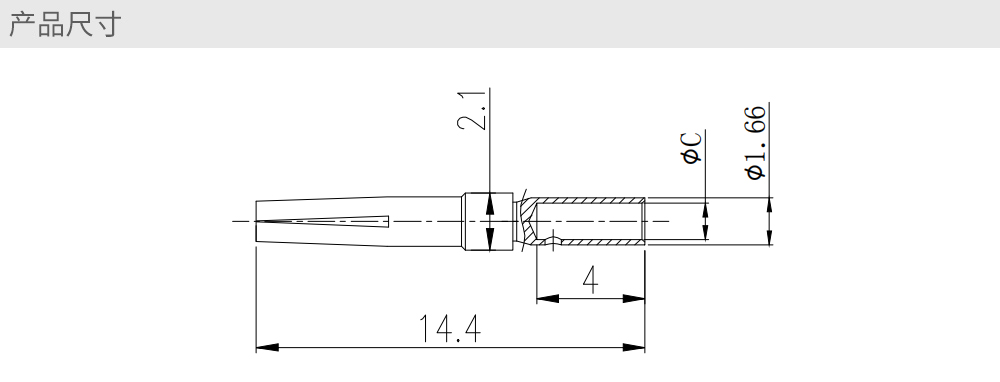

产品代号 Part NO.
|
线径 Wire Diameter
|
AWG | C |
剥线长度 Stripping Length
|
|
CSSF-0.25
|
0.09-0.25mm²
|
28-24 |
0.64
|
5mm |
|
CSSF-0.33
|
0.13-0.33mm²
|
26-22
|
0.9 |
5mm |
|
CSSF-0.52
|
0.33-0.52mm²
|
22-20
|
1.12 | 5mm |
|
CSSF-0.82
|
0.33-0.82mm²
|
22-18
|
1.35 | 5mm |
