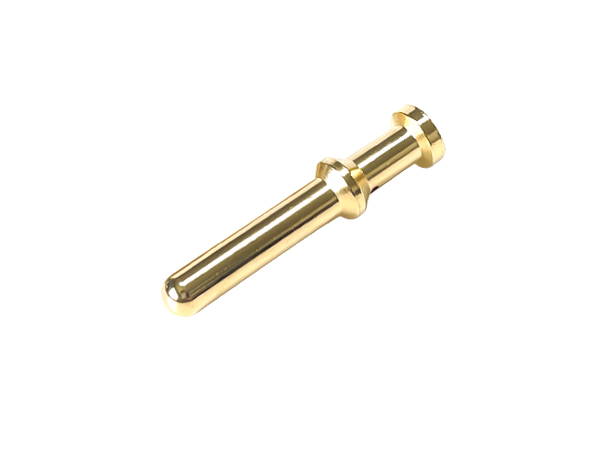

| 40A冷压接插针 40A Crimp contacts | ||
| 公母类型 | 公插针 | |
| 描述 | Description |
适用于HM、HK等插芯 for HM、HK inserts |
| 材料 | Material | 铜合金 copper alloy |
| 表面处理 | Surface | 镀金 gold plated |
| 额定电流 | Rated Current | 40A |
| 接触电阻 | Contact Resistance |
≤0.3mΩ
|
| 线径范围 | Wire Diameter Range |
1.5-10mm²
|
| 可插拔次数 | Mechanical Working Life-mating Cycles | ≥500 |
|
产品代号 Part NO.
|
线径 Wire Diameter
|
AWG | ∅A |
∅B
|
剥线长度 Stripping length |
|
CCGM-1.5
|
1.5mm² | 16 | 3 | 1.75 | 9mm |
|
CCGM-2.5
|
2.5mm²
|
14 | 3.5 |
2.25 |
9mm |
|
CCGM-4.0
|
4.0mm² |
12
|
3.9 | 2.85 | 9.6mm |
|
CCGM-6.0
|
6.0mm² |
10
|
5 | 3.5 | 9.6mm |
|
CCGM-10.0
|
10.0mm² | 8 | 5.6 | 4.3 | 15mm |
