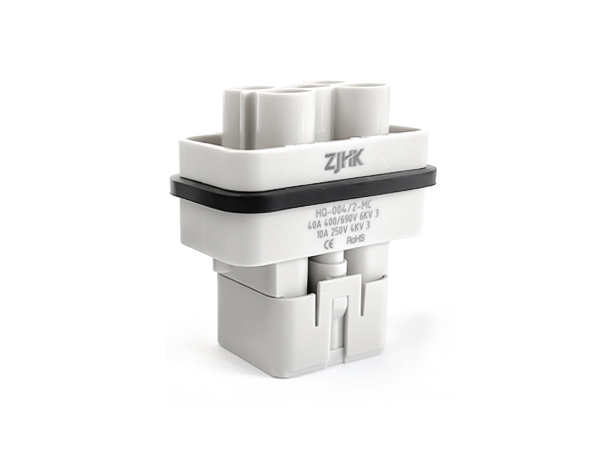

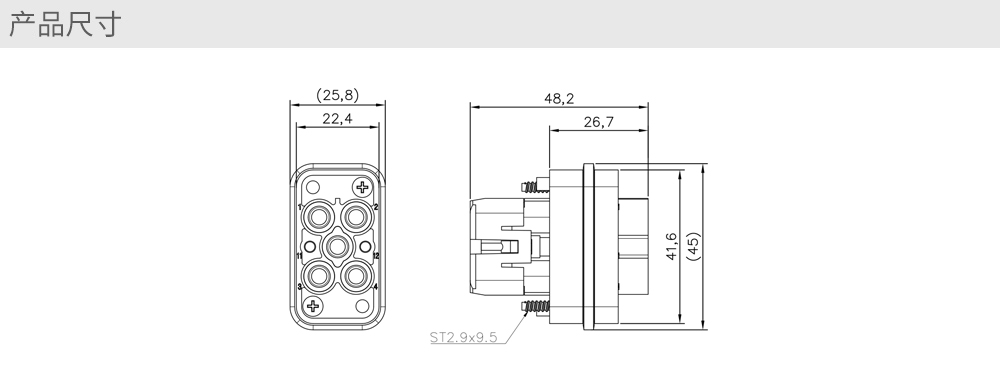

2D
3D
| 插芯 | ||
| 接插件针数 | Number Of Contacts |
4/2+PE
|
|
电力区
|
Power Side
|
|
| －额定电流 | －Rated Current |
40A |
| - 相对地额定电压 |
- Rated Voltage Conductor-ground
|
400V |
|
- 相间额定电压
|
Rated Voltage Conductor-conductor
|
690V |
| －额定脉冲电压 | －Rated Impulse Voltage | 6KV |
| －污染程度 | －Pollution Degree | 3 |
|
信号区
|
Signal Side
|
|
|
- 额定电流
|
Rated Current
|
10A |
|
- 额定电压
|
Rated Voltage
|
250V |
|
- 额定脉冲电压
|
Rated Impulse Voltage
|
4KV |
|
- 污染程度
|
Pollution Degree
|
3 |
| 依据UL/CSA额定电压 | －Rated Voltage Acc.to Ul CSA | 600/250V |
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 依据UL94阻燃等级 | Flammability Acc. To UL94 | V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 Contacts | ||
| 材料 | Material | 铜合金 Copper Alloy |
| 表面处理 | Surface |
镀银 Hard Silver Plated
镀金 Hard gold Plated
|
| 接触电阻 | Contact Resistance | ≤1mΩ |
|
冷压连接
|
Crimp Terminal
|
|
|
mm2
AWG
|
mm2
AWG
|
1.5-6mm2/ 0.14-2.5mm2
16-10/26-14
|
|
最大绝缘直径
|
Max. insulation diameter
|
|
|
-强电针
|
-Power contacts | 5mm |
| 外壳 |
Hoods/housings
|
|
| 塑料外壳 |
Plastic Hoods/housings
|
|
|
-材料
|
-material
|
热塑性塑料 Hermoplastic |
| -联锁元件 | -Locking element |
聚酰胺（尼龙）Polyamide
|
|
-外壳密封
|
-Hoods/Housings sea
|
丁晴橡胶 NBR
|
|
-工作温度范围
|
-Limiting temperatures
|
-40 ℃...+125 ℃
|
|
-依据UL94的阻燃等级
|
-flammability Acc. To UL 94
|
V0
|
|
-联锁状态下依据DIN
|
-degree Of Protection Acc. To DIN | |
|
EN60 529的防护等级
|
EN60 529 For Coupled Connector
|
IP65 |
