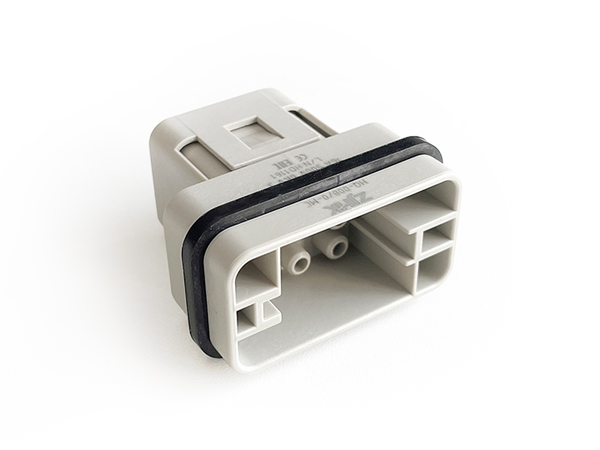

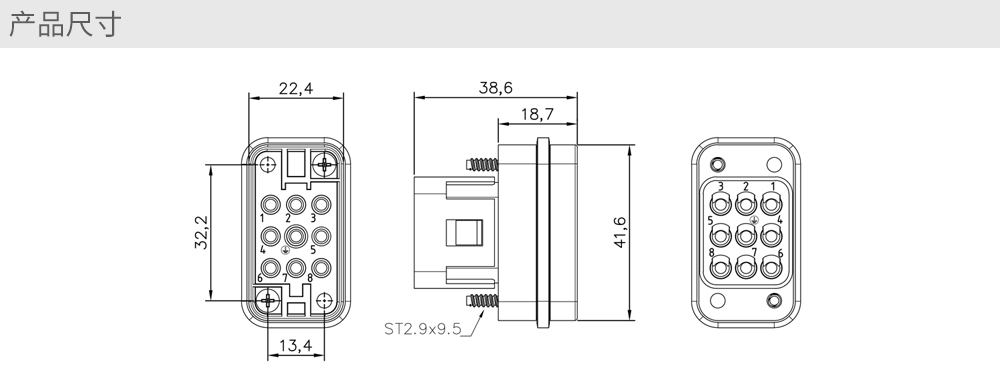

2D
3D
| 插芯 | ||
| 接插件针数 | Number Of Contacts | 8+PE |
| －额定电流 | －Rated Current |
16A |
| - 额定电压 |
- Rated Voltage
|
500V |
| －额定脉冲电压 | －Rated Impulse Voltage | 6KV |
| －污染程度 | －Pollution Degree | 3 |
|
- 当污染等级2时的参数
|
－Pollution Degree 2 Also
|
10A 400 690V 6kV 2
|
|
- 安装金属外壳时
|
- Mounted Metal Hood
|
10A 230/400V 4kV 3
|
| 依据UL/CSA额定电压 | －Rated Voltage Acc.to Ul CSA | 600V |
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 依据UL94阻燃等级 | Flammability Acc. To UL94 | V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 Contacts | ||
| 材料 | Material | 铜合金 Copper Alloy |
| 表面处理 | Surface |
镀银 Hard Silver Plated
镀金 Hard gold Plated
|
| 接触电阻 | Contact Resistance | ≤1mΩ |
|
冷压连接
|
Crimp Terminal
|
|
|
mm2
AWG
|
mm2
AWG
|
0.14-2.5mm2 ( 部分装备情况下可达到4mm2)
26-12
|
| 外壳 |
Hoods/housings
|
|
| 塑料外壳 |
Plastic Hoods/housings
|
|
|
-材料
|
-material
|
热塑性塑料 Hermoplastic |
| -联锁元件 | -Locking element |
聚酰胺（尼龙）Polyamide
|
|
-外壳密封
|
-Hoods/Housings sea
|
丁晴橡胶 NBR
|
|
-工作温度范围
|
-Limiting temperatures
|
-40 ℃...+125 ℃
|
|
-依据UL94的阻燃等级
|
-flammability Acc. To UL 94
|
V0
|
|
-联锁状态下依据DIN
|
-degree Of Protection Acc. To DIN | |
|
EN60 529的防护等级
|
EN60 529 For Coupled Connector
|
IP65 |
| 金属外壳 |
Hoods/housings, Metal
|
|
| -材料 |
-material
|
金属 Metal
|
|
-联锁元件
|
-Locking element
|
不锈钢 Stainless Steel |
| -外壳密封 |
-Hoods/Housings seal
|
丁晴橡胶 NBR |
|
-工作温度范围
|
-Limiting temperatures
|
-40℃...+125℃
|
| -联锁状态下依据DIN |
-degree Of Protection Acc. To DIN
|
|
| EN60 529的防护等级 |
EN60 529 For Coupled Connector
|
IP65
|
