规格参数
认证/下载

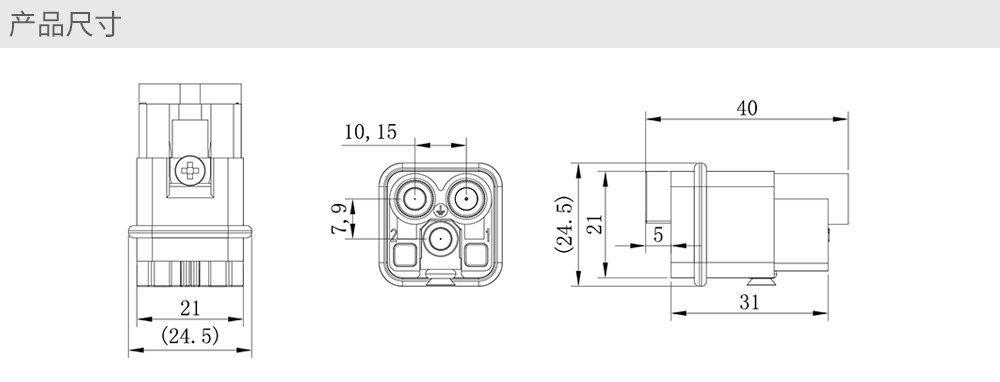

2D
3D
| 插芯 | ||
| 接插件针数 | Number Of Contacts | 2+PE |
| －额定电流 | －Rated Current |
40A |
| －额定电压 | －Rated Voltage | 400V |
| －额定脉冲电压 | －Rated Impulse Voltage | 6KV |
| －污染程度 | －Pollution Degree | 3 |
| 依据UL/CSA额定电压 | －Rated Voltage Acc.to Ul CSA | 400V |
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 依据UL94阻燃等级 | Flammability Acc. To UL94 | V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 Contacts | ||
| 材料 | Material | 铜合金 Copper Alloy |
| 表面处理 | Surface | 镀银 Hard Silver Plated |
| 接触电阻 | Contact Resistance | ≤1mΩ |
| 轴向螺栓连接 |
Screw Terminal
|
|
|
mm2
AWG
|
mm2
AWG
|
2.5-10mm2
14-8
|
|
-拧紧力矩
|
Tightening Torque
|
1.8Nm |
|
剥线长度
|
Stripping Length
|
8mm+2 |
| 外壳 |
Hoods/housings
|
|
| 塑料外壳 |
Plastic Hoods/housings
|
|
|
-材料
|
-material
|
聚碳酸酯 Polycarbonate |
|
-依据UL94的阻燃等级
|
-flammability Acc. To UL 94
|
V0
|
|
-联锁状态下依据DIN
|
-degree Of Protection Acc. To DIN | |
|
EN60 529的防护等级
|
EN60 529 For Coupled Connector
|
IP65 |
| 金属外壳 |
Hoods/housings, Metal
|
|
| -材料 |
-material
|
锌合金 Zinc Die-cast
|
| -联锁状态下依据DIN |
-degree Of Protection Acc. To DIN
|
IP44
|
| EN60 529的防护等级 |
EN60 529 For Coupled Connector
|
IP65/IP68
|
