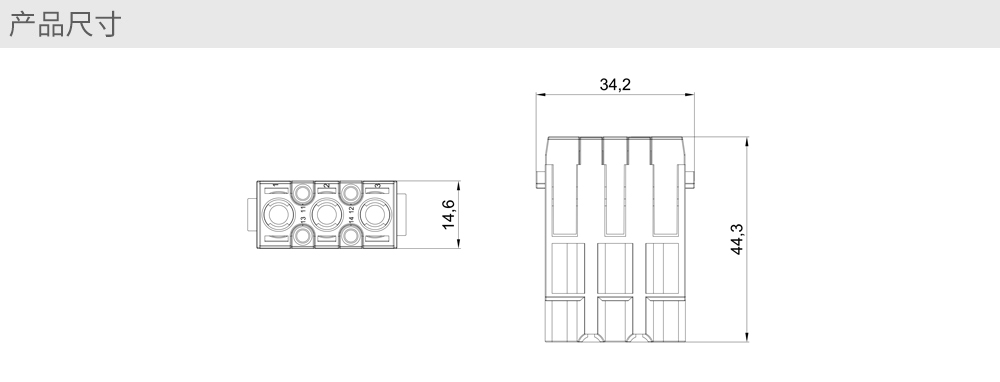

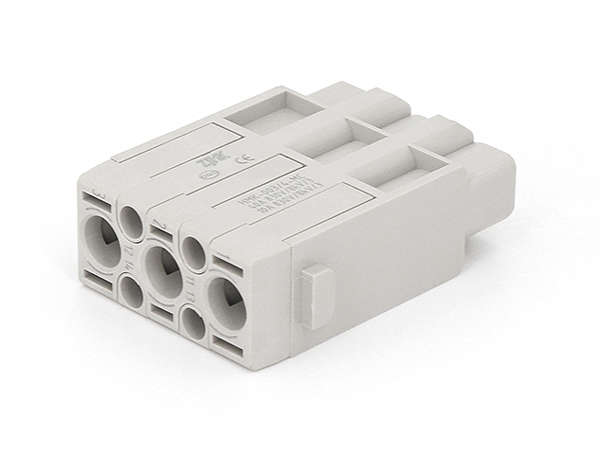

| 插芯 Inserts | ||
| 接插件针数 | Number Of Contacts | 3/4 |
|
依据EN 61 984的额定电压
|
Electrical Data Acc. To EN 61 984
|
|
|
电力区
|
Power Area
|
|
| －额定电流 | －Rated Current |
40A |
| －额定电压 | －Rated Voltage | 830V |
| －额定脉冲电压 | －Rated Impulse Voltage | 8KV |
| －污染程度 | －Pollution Degree | 3 |
|
信号区
|
Signal Area
|
|
| －额定电流 |
-Rated Current
|
10A |
| －额定电压 |
-Rated Voltage
|
830V
|
| －额定脉冲电压 |
-Rated Impulse Voltage
|
8kV
|
| －污染程度 |
-Pollution Degree
|
3 |
| 依据UL/CSA额定电压 | Rated Voltage Acc.to Ul CSA | 600V |
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 阻燃等级(UL94) |
FlammabilityAcc.ToUl94
|
V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 Contactss | ||
|
强电针
|
PowerContacts
|
|
| -材料 | Material | 铜合金 Copper Alloy |
| -表面处理 | Surface |
镀银Hard-silver Plated 镀金Hard-gold Plated |
| -接触电阻 | Contact Resistance | |
|
-电力区 -信号区 |
Power Contacts
Signal Contacts
|
≤ 0.3mΩ
≤3Ω
|
| -冷压连接 |
Crimp Terminal
|
|
|
-mm2 -电力区 -信号区 |
-mm2
Power Contacts
Signal Contacts
|
1.5-6mm2 0.14-2.5mm2 |
| -AWG | AWG | |
|
-电力区 -信号区 |
Power Contacts
Signal Contacts
|
16-10 26-14 |
|
-最大绝缘直经
|
-Max. Insulation Diameter
|
|
| -电力区 |
Power Contacts
|
5mm
|
