规格参数
认证/下载

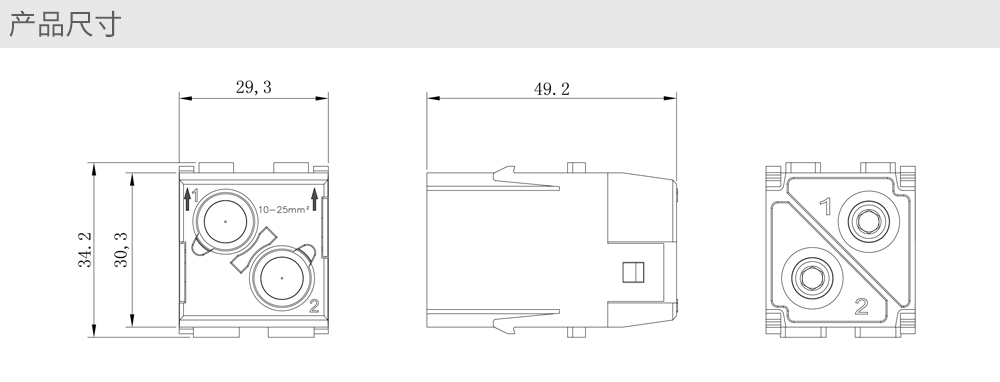

2D
3D
| 插芯 | ||
| 接插件针数 | Number Of Contacts | 2 |
| －依据EN 61 984的电气数据 |
Electrical Data Acc. To EN 61 984
|
|
| －额定电流 | －Rated Current |
100A |
| －额定电压 | －Rated Voltage | 1000V |
| －额定脉冲电压 | －Rated Impulse Voltage | 8KV |
| －污染程度 | －Pollution Degree | 3 |
|
依据UL的额定电压
|
Rated Voltage Acc.to Ul
|
600V
|
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 依据UL 94阻燃等级 | Flammability Acc. To UL94 | V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 | ||
| 材料 | Material | 铜合金 Copper Alloy |
| 表面处理 | Surface | 镀银Hard-silver Plated |
| 接触电阻 | Contact Resistance | ≤0.3mΩ |
| 电缆绞线依据IEC 60 228-5 |
To IEC 60 228 Class 5
|
|
|
轴向螺栓连接
|
Axial Screw Terminal
|
|
|
-mm2
-AWG
- 内六角扳手
- 剥线长度
- 拧紧力矩
- mm
-Nm
|
-mm2
-AWG
-Hexagonal Driver
-Stripping length
-Tightening Torque
- mm
- Nm
|
10-38mm2 6-2 SW4 13mm 10 16 25 35 6 6 7 8 |
