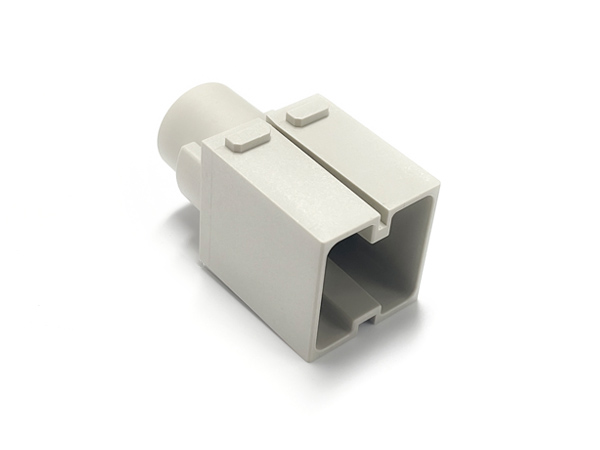

| 插芯 | ||
| 接插件针数 | Number Of Contacts | 1 |
| －依据EN 61 984的电气数据 |
Electrical Data Acc. To EN 61 984
|
|
| －额定电流 | －Rated Current |
200A |
| －额定电压 | －Rated Voltage | 1000V |
| －额定脉冲电压 | －Rated Impulse Voltage | 8KV |
| －污染程度 | －Pollution Degree | 3 |
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 依据UL 94阻燃等级 | Flammability Acc. To UL94 | V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 | ||
| 材料 | Material | 铜合金 Copper Alloy |
| 表面处理 | Surface | 镀银Hard-silver Plated |
| 接触电阻 | Contact Resistance | ≤0.3mΩ |
|
冷压连接
|
Crimp Terminal
|
|
|
-mm2
|
-mm2
|
25-70mm2
|
|
剥线长度
|
Stripping length
|
22.5mm
|
|
最大电缆直径
|
Max. insulation diameter
|
18mm
|
