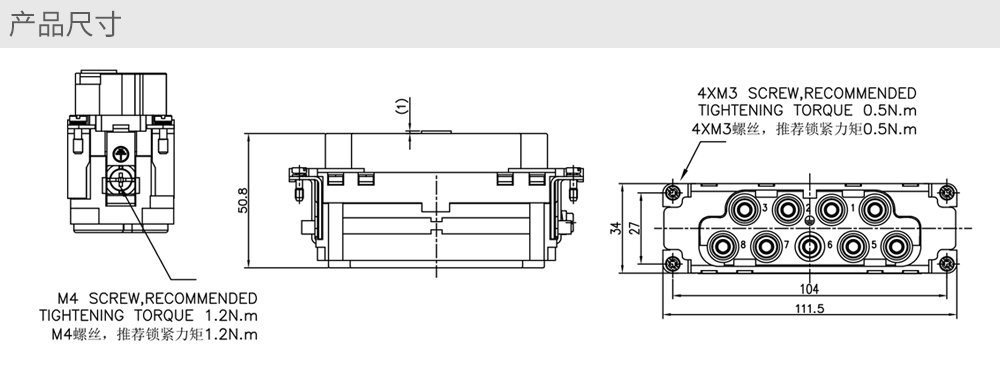

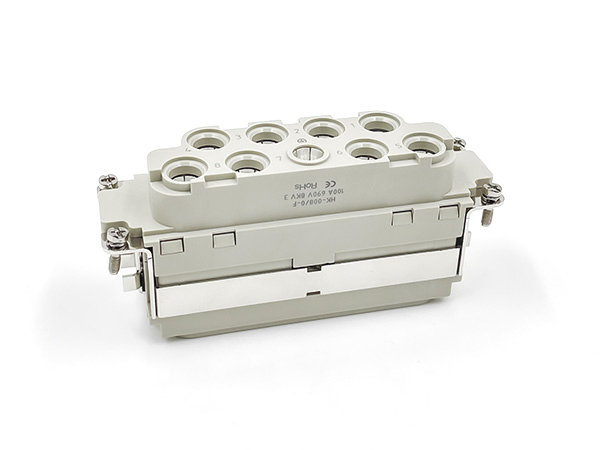

| 插芯 Inserts | ||
| 接插件针数 | Number Of Contacts | 8/0+PE |
|
依据DIN61984的电气数据
|
Electrical Data Acc. To EN 61 984
|
|
|
电力区
|
Power Area
|
|
| －额定电流 | －Rated Current |
100A |
| －额定电压 | －Rated Voltage | 690V |
| －额定脉冲电压 | －Rated Impulse Voltage | 8KV |
| －污染程度 | －Pollution Degree | 3 |
|
-当污染程度 时的参数
|
-Pollution Degree 2 Also |
100A 1000V 8kV 2
|
| 依据UL/CSA额定电压 | Rated Voltage Acc.to Ul CSA | 600V |
|
依据UL/CSA额定电流
|
Rated Current Acc.to Ul CSA
|
82A
|
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 阻燃等级(UL94) |
FlammabilityAcc.ToUl94
|
V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 Contactss | ||
| -材料 | Material | 铜合金 Copper Alloy |
| -表面处理 | Surface | 镀银Hard-silver Plated |
| -接触电阻 | Contact Resistance | ≤0.5mΩ |
| -轴向螺栓连接 |
Axial Screw Terminal
|
|
|
-mm2 - AWG |
-mm2 - AWG |
10-25mm2 7-3 |
| -最大绝缘直径 | -Max.insulation diameter | 11.4mm |
|
-拧紧力矩
|
Tightening Torque
|
|
| -mm2 | -mm2 | 10 16 25 |
| -AWG |
-AWG
|
6 6 7 |
| -剥线长度 |
-Stripping length
|
13±1 mm |
