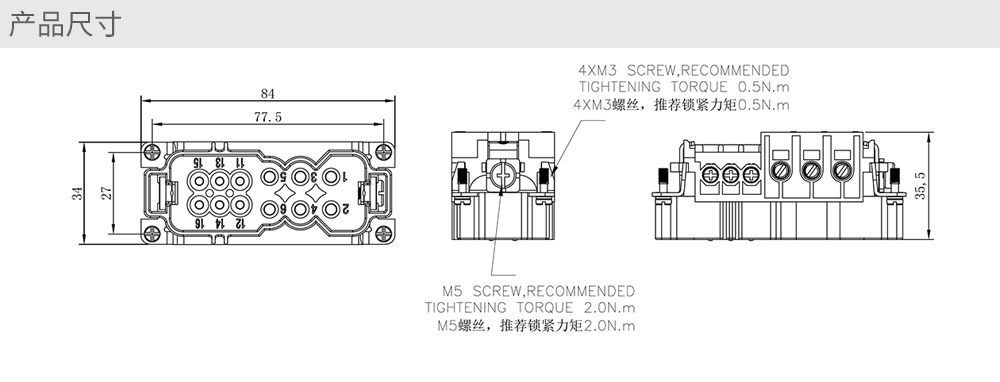

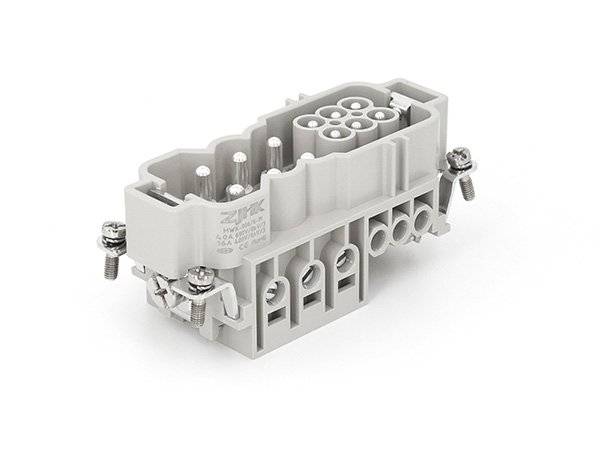

| 插芯 Inserts | ||
| 接插件针数 | Number Of Contacts | 6/6+PE |
|
依据DIN61984的电气数据
|
Electrical Data Acc. To EN 61 984
|
|
|
电力区
|
Power Area
|
|
| －额定电流 | －Rated Current |
40A |
| －额定电压 | －Rated Voltage | 490V |
| －额定脉冲电压 | －Rated Impulse Voltage | 8KV |
| －污染程度 | －Pollution Degree | 3 |
|
信号区
|
Signal Area
|
|
| －额定电流 |
-Rated Current
|
16A |
| －额定电压 |
-Rated Voltage
|
400V
|
| －额定脉冲电压 |
-Rated Impulse Voltage
|
6kV
|
| －污染程度 |
-Pollution Degree
|
3 |
| 依据UL/CSA额定电压 | Rated Voltage Acc.to Ul CSA | 600/600V |
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 阻燃等级 |
FlammabilityAcc.ToUl94
|
V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 Contactss | ||
| 材料 | -Material | 铜合金 Copper Alloy |
| 表面处理 | -Surface | 镀银Hard-silver Plated |
| 接线形式 |
Terminal
|
螺钉连接Screw Terminal |
|
接触电阻
|
Contact Resistance
|
|
|
-电力区 -信号区 |
Power Area
Signal Area
|
≤1mΩ ≤1mΩ |
|
导线规格
|
Wire gauge
|
|
| -电力区 |
Power Area
|
|
| -mm2 | -mm2 | 4-10mm2 |
| -AWG | -AWG | 12-8 |
| 信号区 |
Signal Area
|
|
| -mm2 | -mm2 |
1-2.5mm2
|
| -AWG | -AWG |
18-4
|
| -拧紧力矩 |
-Tightening Torque
|
|
|
-电力区 -信号区 |
Power Area
Signal Area
|
mm 1.5 2.5 4 6 10
N.m 1.2 2 3 3 3
0.5Nm |
