规格参数
认证/下载

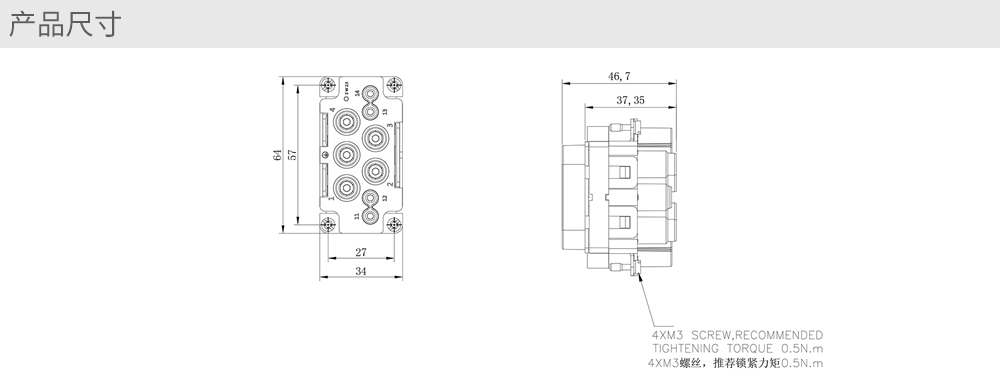

2D
3D
| 插芯 Inserts | ||
| 接插件针数 | Number Of Contacts | 4/4+PE |
|
依据DIN61984的电气数据
|
Electrical Data Acc. To EN 61 984
|
|
|
电力区
|
Power Area
|
|
| －额定电流 | －Rated Current |
63A |
| －额定电压 | －Rated Voltage | 690V |
| －额定脉冲电压 | －Rated Impulse Voltage | 8KV |
| －污染程度 | －Pollution Degree | 3 |
|
信号区
|
Signal Area
|
|
| －额定电流 |
-Rated Current
|
16A |
| －额定电压 |
-Rated Voltage
|
250V
|
| －额定脉冲电压 |
-Rated Impulse Voltage
|
4kV
|
| －污染程度 |
-Pollution Degree
|
3 |
| 依据UL/CSA额定电压 | Rated Voltage Acc.to Ul CSA | 600/230V |
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 阻燃等级 |
FlammabilityAcc.ToUl94
|
V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 Contactss | ||
|
强电针
|
PowerContacts
|
|
| -材料 | Material | 铜合金 Copper Alloy |
| -表面处理 | Surface | 镀银Hard-silver Plated |
| -接触电阻 | Contact Resistance | ≤0.5mΩ |
| -轴向螺栓连接 |
Axial Screw Terminal
|
|
|
-mm2 - AWG |
-mm2 - AWG |
6-22mm2 8-4 |
| -最大绝缘直径 | -Max.insulation diameter | |
| 6...16mm2 | 8.9mm | |
| 22mm2 | 11mm | |
|
-拧紧力矩
|
Tightening Torque
|
|
| -mm2 | -mm2 | 6 10 16 22 |
| -AWG |
-N.m
|
2 3 4 5 |
| -剥线长度 |
-Stripping length
|
|
| 6 10 16 22 | ||
|
11+¹ 11 +¹ 11+¹ 13 +¹
|
||
| 信号区 |
Signal Area
|
|
|
-材料
|
-Material
|
铜合金CopperAlloy
|
|
-表面处理
|
-Surface
|
镀银Hard-silverPlated
|
|
-接触电阻
|
-ContactResistance
|
≤3mΩ
|
|
-冷压连接
|
-CrimpTerminal
|
|
|
-mm2 - AWG |
-mm2 - AWG |
0.14-2.5mm2
26-14
|
| -剥线长度 |
-Stripping length
|
7-9mm |
