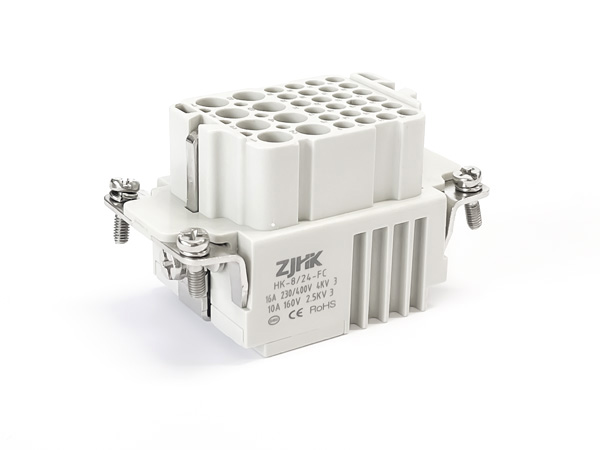

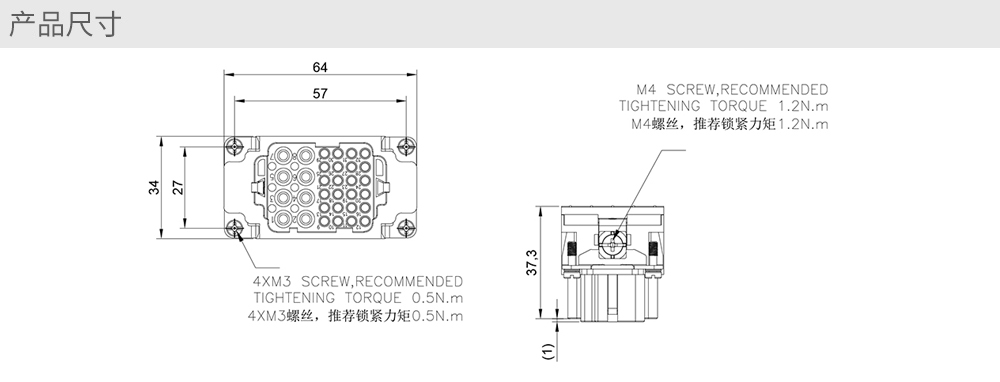

| 插芯 Inserts | ||
| 接插件针数 | Number Of Contacts | 8/24+PE |
|
依据 的额定电压
|
Electrical Data Acc. To EN 61 984
|
|
|
电力区
|
Power Area
|
|
| －额定电流 | －Rated Current |
16A |
| －额定电压 | －Rated Voltage | 230/400V |
| －额定脉冲电压 | －Rated Impulse Voltage | 4KV |
| －污染程度 | －Pollution Degree | 3 |
| －污染等级2时的参数 | －Pollution Degree 2 Also | 10A 250V 4kV 2 |
|
信号区
|
Signal Area
|
|
| －额定电流 |
-Rated Current
|
10A |
| －额定电压 |
-Rated Voltage
|
160V
|
| －额定脉冲电压 |
-Rated Impulse Voltage
|
2.5kV
|
| －污染程度 |
-Pollution Degree
|
3 |
| 依据UL/CSA额定电压 | Rated Voltage Acc.to Ul CSA | 600/300V |
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 阻燃等级 |
FlammabilityAcc.ToUl94
|
V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 Contactss | ||
|
强电针
|
PowerContacts
|
|
| -材料 | Material | 铜合金 Copper Alloy |
| -表面处理 | Surface |
镀银Hard-silver Plated 镀金Hard-gold Plated |
| -接触电阻 | Contact Resistance | ≤1mΩ |
| -冷压连接 |
Crimp Terminal
|
|
|
-mm2 - AWG |
-mm2 - AWG |
0.5-4mm2 20-12 |
| 信号针 |
SignalContacts
|
|
|
-材料
|
-Material
|
铜合金CopperAlloy
|
|
-表面处理
|
-Surface
|
镀金Hard-goldPlated
镀银Hard-silverPlated
|
|
-接触电阻
|
-ContactResistance
|
≤3mΩ
|
|
-冷压连接
|
-CrimpTerminal
|
|
|
-mm2 - AWG |
-mm2 - AWG |
0.14-2.5mm2
25-14
|
