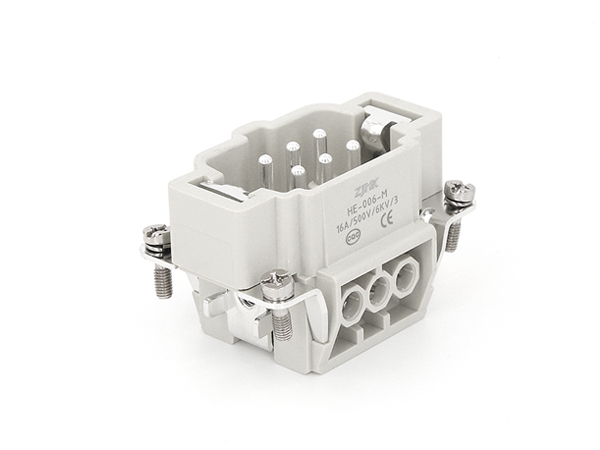

| 插芯 | ||
| 接插件针数 | Number Of Contacts | 6 |
| －额定电流 | －Rated Current |
16A |
| －额定电压 | －Rated Voltage | 500V |
| －额定脉冲电压 | －Rated Impulse Voltage | 6KV |
| －污染程度 | －Pollution Degree | 3 |
| －污染等级2时的参数 | －Pollution Degree 2 Also | 16A 400/690V 6kV 2 |
| －依据UL/CSA额定电压 | －Rated Voltage Acc.to Ul CSA | 600V |
| 绝缘电阻 | Insulation Resistance | ≥1010Ω |
| 材料 | Material | 聚碳酸酯 Polycarbonate |
| 工作温度范围 | Limiting Temperatures | -40℃...+125℃ |
| 依据UL94阻燃等级 | Flammability Acc. To UL94 | V0 |
| 可拔插次数 | MecHEnical Working Life-mating Cycles | ≥500 |
| 插针 Contacts | ||
| 材料 | Material | 铜合金 Copper Alloy |
| 表面处理 | Surface | 镀银/镀金 |
| 接触电阻 | Contact Resistance | ≤1mΩ |
| 螺钉连接 |
Screw Terminal
|
|
| - 导线规格 | -Wire Gauge | 0.14-2.5mm2 |
| - AWG | -Awg | 26-14 |
|
-拧紧力矩
|
-Tightening Torque
|
0.5Nm |
|
-剥线长度
|
-Stripping length
|
7.0mm |
