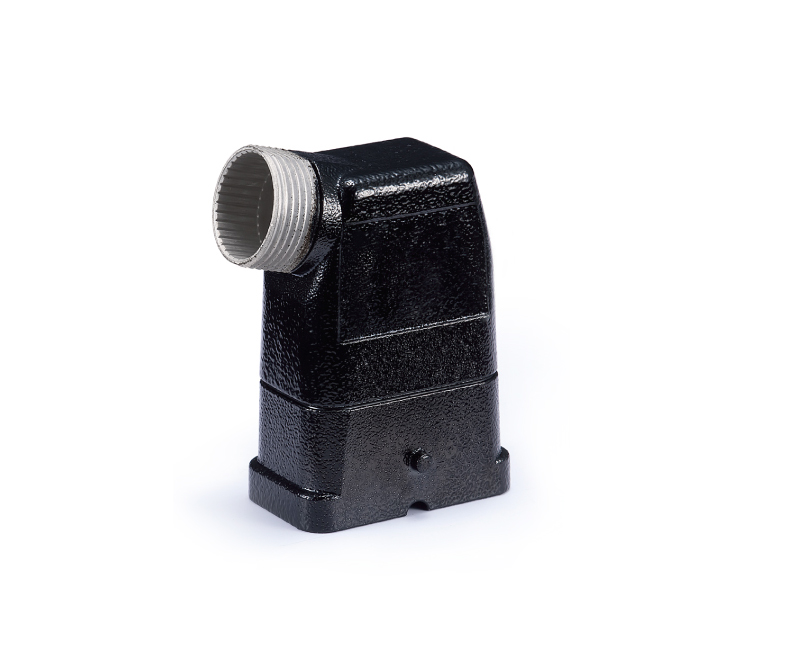

HC Metal Hoods & Housings HC-SEH-2B-M25

The current position is：Home >Products >Hood/Housing Series >HC Metal Hood/Housing Series

Product description

	HC-SEH-2B-M25
	COLUMN：Hood & Housing series/HC Metal Hood & Housing
	POSITION：Housings
	PRODUCT MODEL：HC-SEH-2B-M25
	ORDER NUMBER：19127080511
	PRODUCT CERTIFICATION：CQC CE

产品参数

表面处理	Surface	Epoxy power paint/Chromated/nickeling
材料	Material	zinc die-cast
颜色	Colour	Black/brushed nickel
联锁元件	Locking element
---联锁方式	-Lever type	Lever
---材料	-Material	Stainless steel
密封元件	Hoods & Housings seal	NBR
适用温度范围	Limiting temperatures	-40℃...+125℃
阻燃等级	Flammability acc. to UL 94	V0
防护等级	Degree of protection acc.to DIN EN 60 529 for coupled connector	IP65
